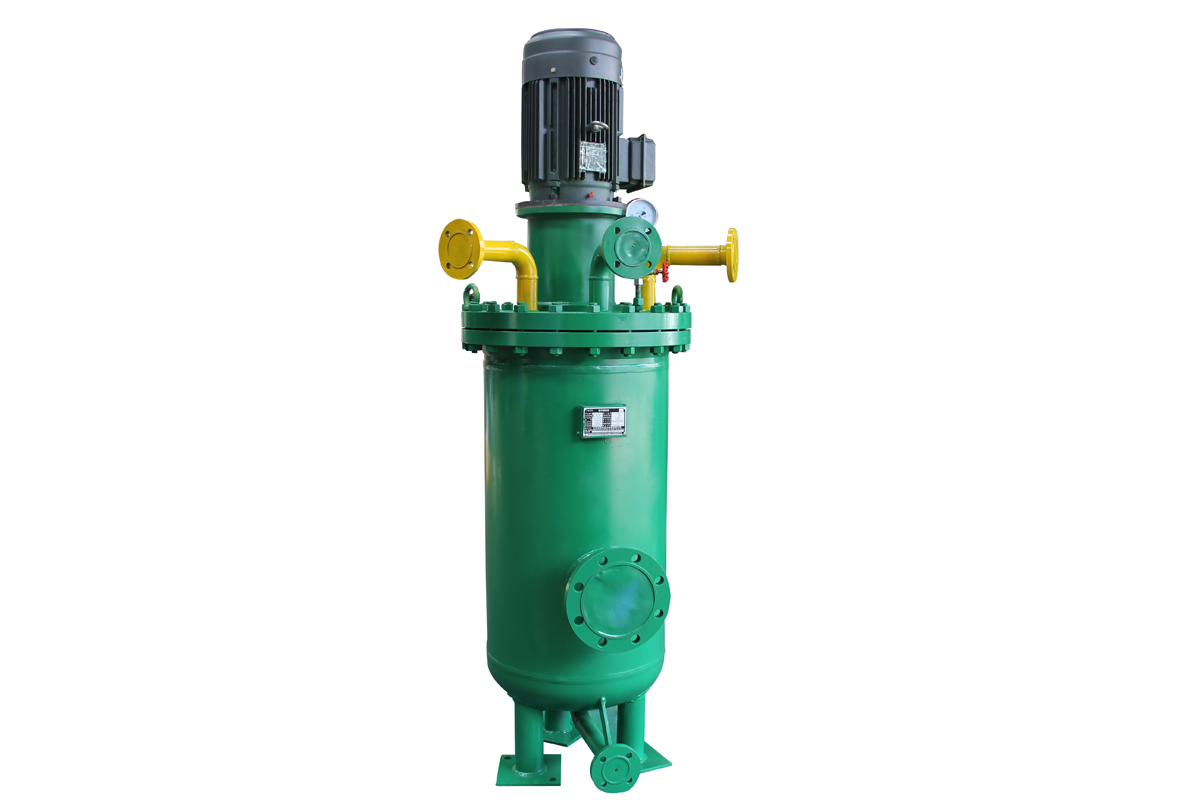

VS6 Vertical cylinder bag liquid chlorine magnetic pump

• Technical parameters Performance：

   outlet diameter: DN25 DN40 DN50 DN80 DN100 DN125

   Flow  rate: 0~0.5~1.5~2.5~200m3/h     Head: ~400m

  Required NPSH: 0.2~4 m           Temperature: -40~150 °C

  Pressure rating: ~ 10 MPa                 power: ~250KW

  Structural features：

  ■ Equipped with single-stage and multi-stage European hydraulic components.

  ■ Vertical structure, standard buffer tank, tank height and diameter are determined according to needs, and there are two types of foot tank and straight tank.

  ■ To ensure safety and prevent the pump from operating at very low or even zero flow rates, a minimum internal recirculation can be set in the pump.

  ■ ntrinsically safe design, comprehensive optimization and upgrade:

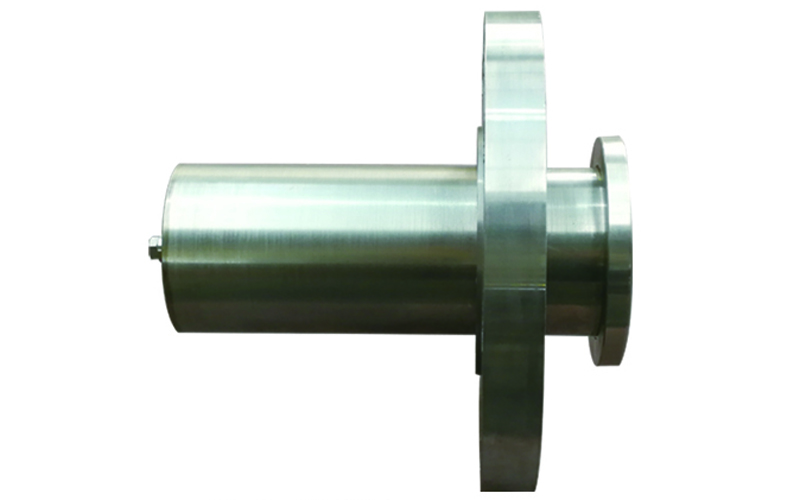

  The inner and outer double-layer isolating sleeve sealing structure can realize the single-layer isolation sleeve leakage alarm, realize multiple safety protection, and can adopt the overall fully enclosed design according to the need to ensure that the medium always has zero leakage under the limit condition.


  ■ Applicable occasions:


  The medium inside the container with the bottom opening can be installed and installed above or below the ground.

  ■ Applicable media:


  Liquid chlorine, anhydrous hydrogen fluoride, hydrogen chloride, liquid ammonia, carbon disulfide, sulfur dioxide, titanium tetrachloride, silicon tetrachloride, trichlorosilane, methane chloride, olefins, chlorosilanes, etc.
